COFDM HD Wireless UAV Video Wifi Transmitter with QPSK 4QAM Constellation and Long Range Communication

Name: COFDM HD Wireless UAV Video Wifi Transmitter with QPSK 4QAM Constellation and Long Range Communication
Brand: Kimpok
Price: 1 USD

Quality COFDM HD Wireless UAV Video Wifi Transmitter with QPSK 4QAM Constellation and Long Range Communication wholesale

Place of Origin : Guangdong, China

Brand Name : Kimpok

Model Number : KP-HDT1W +KP-HDR50

Price : Negotiation

Certification : CE

MOQ : 1 Piece

Payment Terms : T/T, PayPal, Alipay

Supply Ability : 5000/month

Delivery Time : 1-3 working days

Packaging Details : International standard packing

Product name : 1 watt UAV Video transmitter

Frequency : 300-900Mhz or other frequency customized

Modulation : COFDM

Consumption : <40W

Encryption : AES 128 bits

Constellation : QPSK(4QAM),16QAM,64QAM

FEC : 1/2 2/3 3/4 5/6 7/8

Guard Interval : 1/32 1/16 1/8 1/4

Carrier : 2K,8K

Bandwidth : 2/3/4/6/7/8MHz (option)

Contact Now

Product Description

Such new design 1080P HD transmitter is a powerful HD transmit system, using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.

Transmitter parameter:

Frequency	300-900Mhz or other frequency customized
Modulation	COFDM
Consumption	<40W
Encryption	AES 128 bits
Constellation	QPSK(4QAM),16QAM,64QAM
FEC	1/2 2/3 3/4 5/6 7/8
Guard Interval	1/32 1/16 1/8 1/4
Carrier	2K,8K
Bandwidth	2/3/4/6/7/8MHz (option)
Transfer rate	6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power	1 watt
Video input	HDMI
Video coding	MPEG-4/H.264
Video resolution	19201080P/I@60fps; 1280720P/I@60fps; 704*576 PAL
Working voltage	DC12V
Working Temperature	-20℃ -- +55℃
Dimension	729832mm
Weight	190g without battery; 250g with battery
Box colour	Black
Antenna port	N type

Receiver parameter:

Frequency	300-900Mhz (option) or other frequency customized
Bandwidth	2/3/4/5/6/7/8MHz (option)
RF input level	-94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance	50Ω
RF input type	N type
Modulation	COFDM
Constellation	QPSK,16QAM,64QAM(adjustable)
FEC	1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier	2k
Guard Interval	1/32,1/16,1/8,1/4(adjustable)
Video coding	MPEG-4/H.264
Screen	4:3 16:9
Video resolution	1920*1080P/I@4Mhz
Audio output	Stereo unbalance 300/ 200mv
AV output	2 Audio output + 2 Video output; SDI
Working voltage	AC220V/DC12V <1A
working temperature	-20℃~+50℃
Dimension	48330044mm
Weight	1.5kg

COFDM HD Wireless UAV Video Wifi Transmitter with QPSK 4QAM Constellation and Long Range Communication

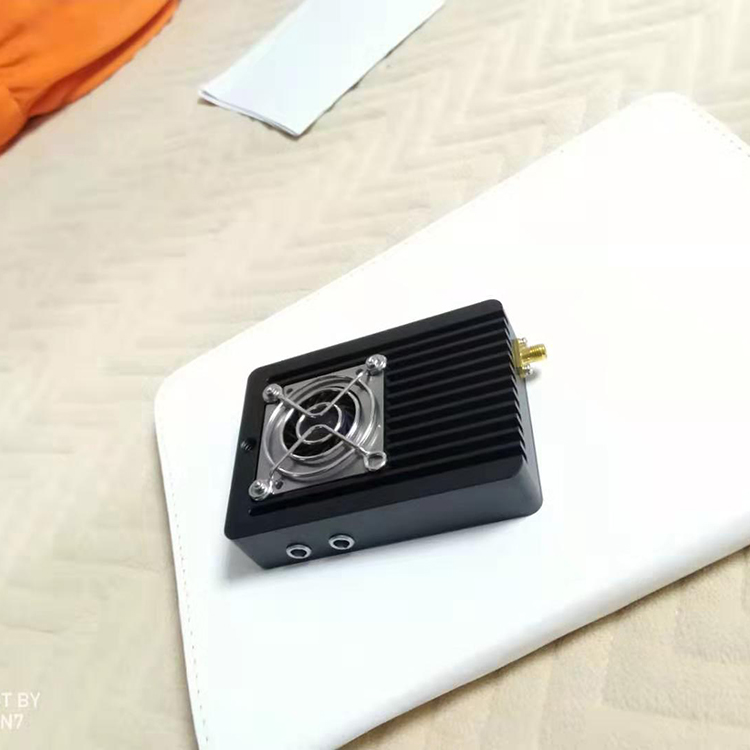

COFDM HD Wireless UAV Video Wifi Transmitter with QPSK 4QAM Constellation and Long Range Communication Images
