COFDM Wireless Digital AV Transmitter for Excavator Real Time Transmission AES 128/256 Bits Data Encryption

Place of Origin : Guangdong, China

Brand Name : Kimpok technology

Model Number : KP-HDT25W

MOQ : 1 Piece

Price : Negotiation

Payment Terms : T/T, PayPal, Alipay

Supply Ability : 5000/month

Delivery Time : 1-3 working days

Packaging Details : International standard packing

Product name : Vehicle Mounted Digital Av Transmitter

Frequency : 300-900MHz option,1.2G/2.4G/5.8GHz

Power supply : DC11-14.5V/1.9A

Modulation : COFDM

RF Bandwidth : 4/8MHz(adjustable)

FEC : 1/2 2/3 3/4 7/8

Guard Interval : 1/32 1/16 1/8 1/4

Data Encryption : AES 128/256 Bits

Contact Now

Vehicle Mounted COFDM Wireless Digital AV Transmitter for Excavator Real Time Transmission

Excavator wireless transmitter parameter:

KP-HDT20W is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.264 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission. Good heat resistant with two cooling fans. Be safety with AES128 bits. It works well in fast-moving transmission.

Microwave RF solutions wireless link video communication transmitter has high efficiency innovative H.264 compression encoding, integrated with lightweight, low power consumption of OLED display control panel, integrating digital modulation, and highly integrated HD moving LOS and NLOS digital video transmission equipment.

Microwave RF solutions real-time wireless video communication transmitter is widely used in UAV aviation filming, broadcast, covert investigation, image monitor or real-time wireless video transmission and so on.

Transmitter parameter:

Modulate

COFDM

Working voltage

DC12V

Working current

≤6A@DC12V

RF bandwidth

2/4/6/8MHz (adjustable)

Frequency

300-900Mhz or other frequency customized

Output power

10-20W (adjustable)

Video input

HDM-I/SDI; CVBS

Data input (option)

RS232/TTL, up to 115200bps

Video resolution

1920*1080P/I@60fps; 1280*720P/I@60fps

Video coding

MPEG-2/H.264/H265

Video rate

512Kbps-16Mbps (adjustable)

Encryption

AES 128 bits

AV input

1Vp-p, 75Ω. Left and right channel

Video system

PAL/NTSC

Power flatness

Full band ≤1.5dB

CNR

≥25dBc@48dBm

Second harmonic

≥60dBc

CBER

<2.0E-4

VBER

<1.0E-7

MER

32dB

Carrier

2k 4k 8k

Constellation

QPSK,16QAM,64QAM (option)

FEC

1/2, 2/3, 3/4, 5/6, 7/8 (option)

Guard Interval

1/32, 1/16, 1/8, 1/4 (option)

Working Temperature

-25°C~55°C

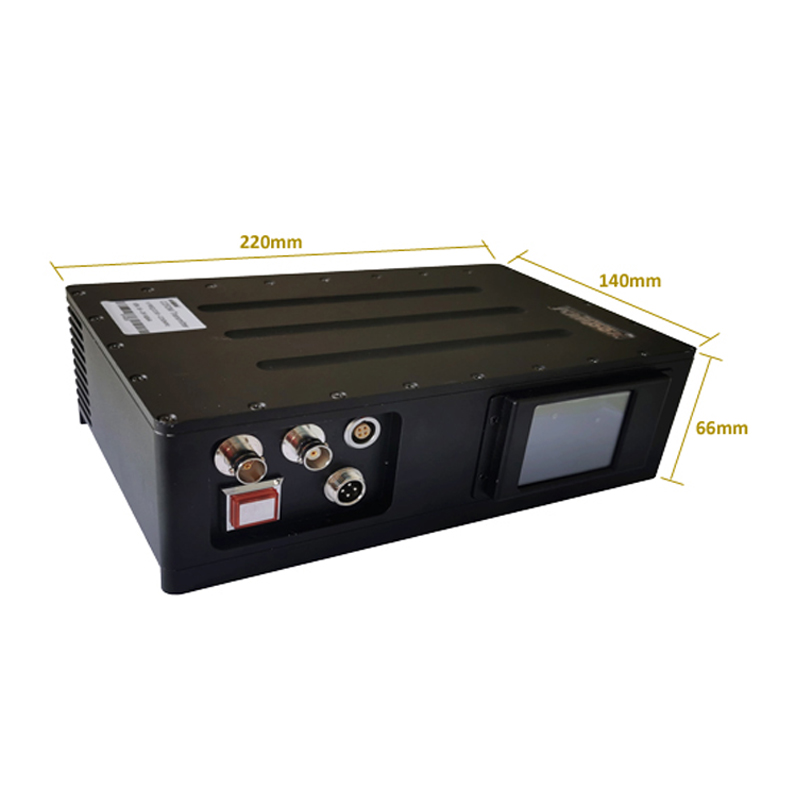

Dimension

220*140*66mm

Weight

2.5kg

Receiver parameter:

Frequency

300-900MHz or other frequency customized

Bandwidth

2/3/4/5/6/7/8MHz (option)

RF input level

-94dBm~0dBm(8M)/-98dBm~0dBm(2M)

RF input impedance

50Ω

RF input type

N type

Modulation

COFDM

Constellation

QPSK,16QAM,64QAM(adjustable)

FEC

1/2,2/3,3/4,5/6,7/8(adjustable)

Carrier

2k

Guard Interval

1/32,1/16,1/8,1/4(adjustable)

Video coding

MPEG-2/H.265

Screen

4:3 16:9

Video resolution

1080P@4MHz

Audio output

Stereo unbalance 300/ 200mv

AV output

2 Audio output + 2 Video output. SDI/HDM/ASI

Working voltage

AC220V/DC12V <1A

working temperature

-20℃~+50℃

Dimension

480*260*45(1U chassis)

Weight

1.5kg

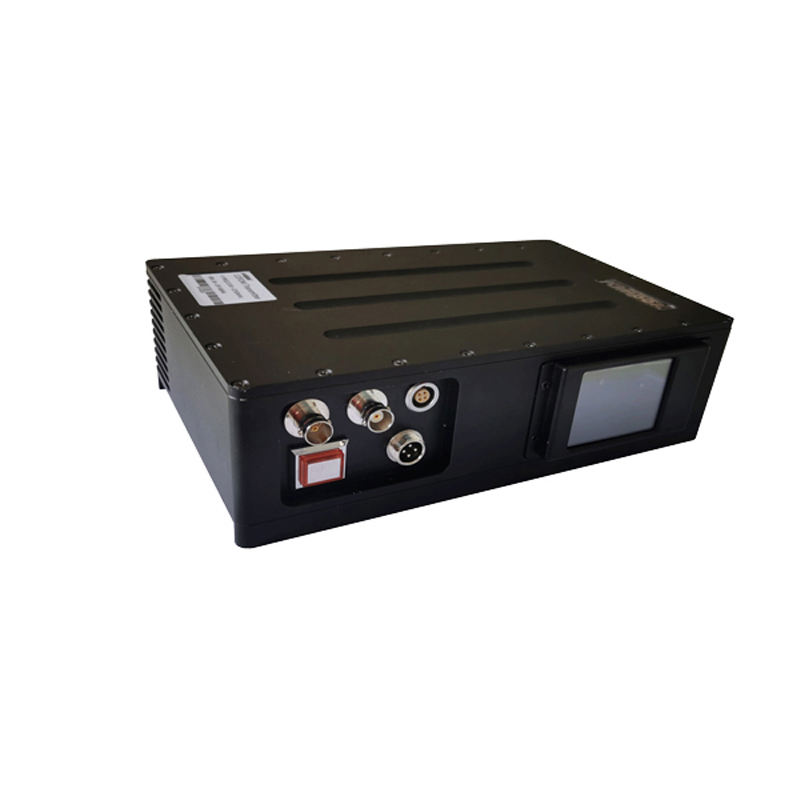

COFDM Wireless Digital AV Transmitter for Excavator Real Time Transmission AES 128/256 Bits Data Encryption
COFDM Wireless Digital AV Transmitter for Excavator Real Time Transmission AES 128/256 Bits Data EncryptionCOFDM Wireless Digital AV Transmitter for Excavator Real Time Transmission AES 128/256 Bits Data EncryptionCOFDM Wireless Digital AV Transmitter for Excavator Real Time Transmission AES 128/256 Bits Data EncryptionCOFDM Wireless Digital AV Transmitter for Excavator Real Time Transmission AES 128/256 Bits Data EncryptionCOFDM Wireless Digital AV Transmitter for Excavator Real Time Transmission AES 128/256 Bits Data Encryption
