40km FPV Wireless Video Transmitter 1.2Ghz 1.3Ghz VTX 8W RF Power Long Range Transmission

Brand Name : Kimpok

Model Number : KP-12VTX8WG

Certification : CE

Place of Origin : China

MOQ : 1 Piece

Price : Negotiation

Payment Terms : T/T, PayPal, Alipay

Supply Ability : 5000 piece/month

Delivery Time : 1-3 working days

Packaging Details : International standard packing

Type : Wireless video transmission

Power : DC 12V

Frequency : 1.2Ghz

Channel : 8 Channels

Transmit power : 8W

Distance : 40km LOS from air to ground

Contact Now

40km FPV Wireless Video Transmitter 1.2Ghz 1.3Ghz VTX 8W RF Power Long Range Transmission

Description:

The transmitter of the device is highly technical, and the use of special metal materials helps to dissipate heat, making it more suitable for long working hours. In addition, the signal input uses a universal AV interface, which can easily be compatible with all traditional AV interfaces such as cameras, VCDS, DVDS, etc., which makes it suitable not only for professional wireless CCTV transmitters and receivers in CCTV security projects, but also for other applications. It can also be used for simultaneous transmission of video and data signals in FPV systems, drones, remotely piloted aircraft/helicopters, and unmanned vehicles, using an omnidirectional antenna with 0dB gain, which can guarantee transmission distances between 8 and 15 km in open areas.

Parameter:

Transmitter parameter:

Voltage 12V DC
Current 700mA
Frequency 1.2GHz (1080MHz, 1120MHz, 1160MHz, 1200MHz, 1240Mhz, 1280MHz, 1320MHz, 1360MHz)
Number of channels 8 channels
RF power 8 watt
Video Output 1 Vp-p(FM)
Audio Output 1 Vp-p(FM)
Audio Carrier Ware 5.5M 6.0M
Temperature -10℃~ +50℃
Weight 98g
Dimensions (L*W*H) 67x40x18mm

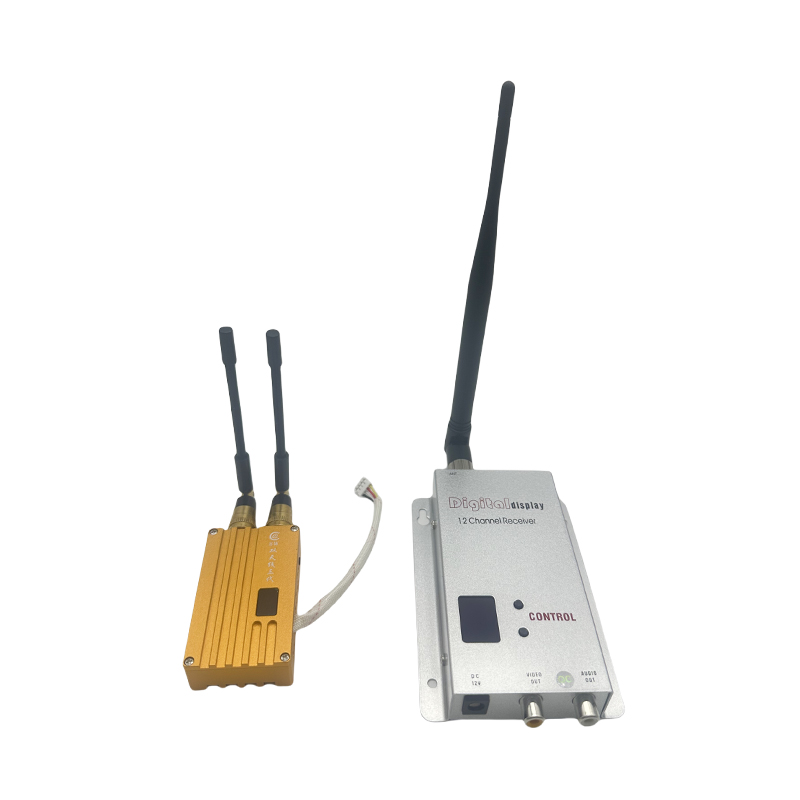

Overall Configuration Transmitter, AV cable, antenna

Receiver parameter:

Frequency 1.2Ghz
Channel 12 channels
Working voltage DC 12V
Current consumption 260mA
Weight 115g
Size 115*80*21mm
Accessories receiver, antenna, AV cable

40km FPV Wireless Video Transmitter 1.2Ghz 1.3Ghz VTX 8W RF Power Long Range Transmission
