Product Description(COFDM Video Transmitter for Seamless Video Delivery in Any Environment)
200km 50km Long Range COFDM Wireless FPV HD SDI Transmitter for Car to Car with Adjustable RF Power Output
Product Overview
The KP-CM60H is a high-power RF device specifically designed for vehicle NLOS mobile digital image transmission. Featuring a standard 19-inch 2U dimension for easy installation in vehicles and boats, this transmitter supports one video channel and two audio channels with exceptional long-range transmission capabilities.
Key Specifications
| Parameter | Specification |
| Place of Origin | China |
| Brand Name | Kimpok |
| Certification | CE Certification |
| Model Number | KP-CM60H |
| Frequency/AV | 300-900MHz option or 1.2GHz; 2.4GHz; 5.8GHz |
| Frequency/DATA | 433MHz |
| Modulation | COFDM 2K QPSK |
| RF Power Output | 60-80W (adjustable) |
| Voltage | DC11-14.5V |
| Current | 4.7A |
| Video Rate | 15Mbps(MAX) |
Technical Specifications
| Parameter | Details |
| Constellation | QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz |
| FEC | 1/2,2/3,3/4,5/6,7/8 (optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Bandwidth | 2/2.5/4/8M(adjustable) |
| Video Interface | HDMI; SDI; CVBS |
| Encryption | AES 128 bit / ALLTECH Basic scrambling |
| Video Compression | H.265/H.264 |
| Resolution | 1280*720P / 1980*1080P |
| Operating Temperature | -25℃~55℃ |
| Size | 430*420*89mm |
| Weight | 12kg |
Key Features
- COFDM modulation for stable transmission
- H.264 video compression for DVD-quality video
- Hard aluminum housing with built-in cooling fans
- Mobile and NLOS (Non line-of-sight) transmission capability
- AES 128-bit encryption for enhanced security
- Low system latency
- Modular design with compact structure
- Multiple waveband options: VHF/L/S
- Optional two-way voice communication support

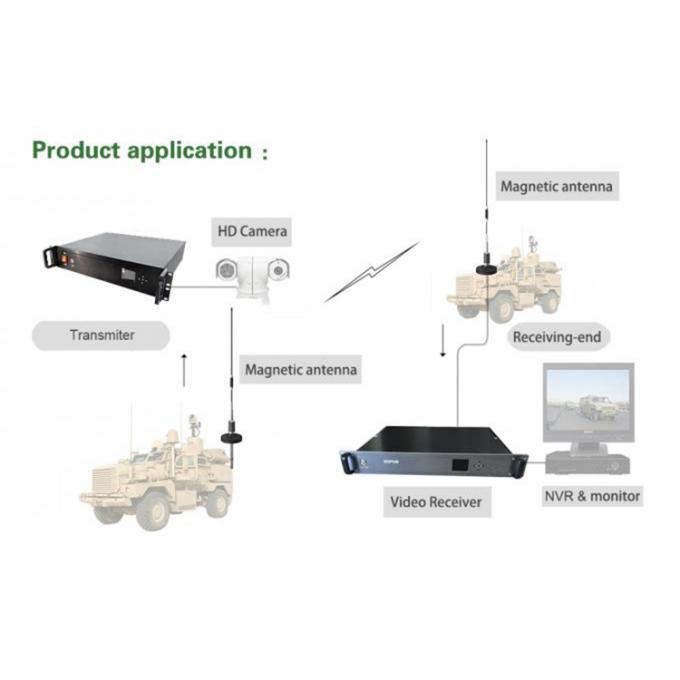

Applications
Ideal for car-to-car, boat-to-boat, vehicle-to-fixed station, boat-to-fixed station, and helicopter-to-fixed station communications. Can function as a repeater with transmission ranges up to 200km LOS from air and 50km NLOS distance when used with omni-directional antenna.
Trading Information
| Parameter | Details |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiation |
| Packaging Details | International standard packing |
| Delivery Time | 3-7 work days |
| Payment Terms | T/T, PayPal, Alipay |
| Supply Ability | 5000/month |
